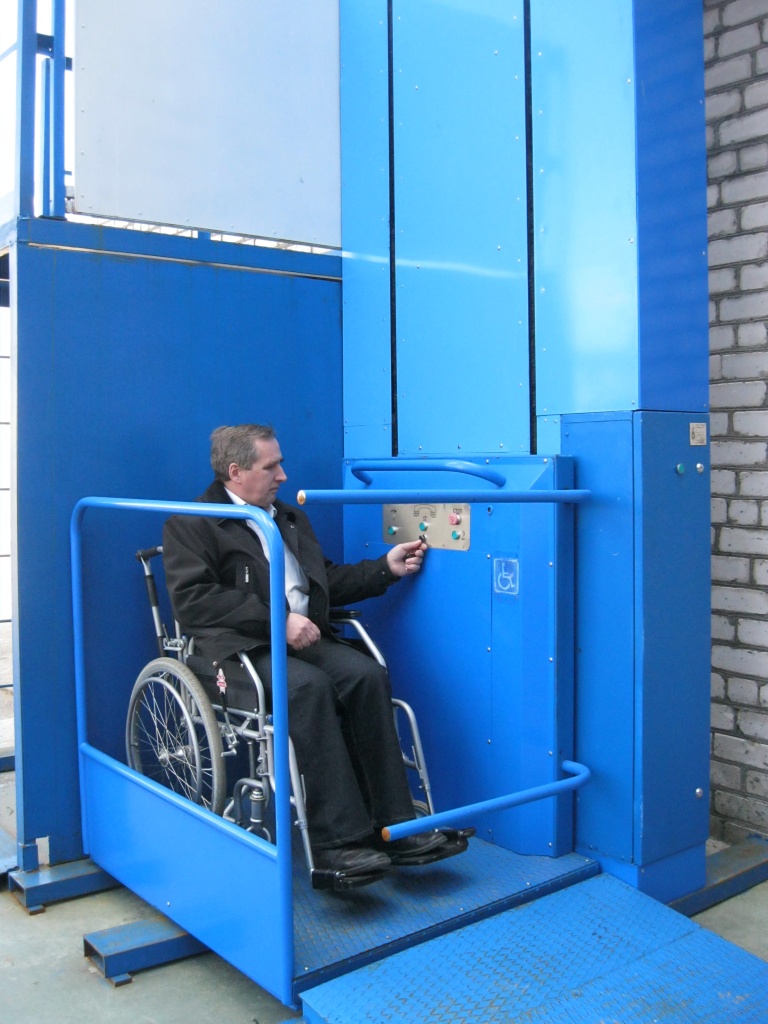

Elevating Platform with a Vertical Shift for Handicapped (open type) PPB225VIO
Application area: It is installed in living, public and industrial buildings and structures which have differences in floor level in the way of movement of people with statnamic function violations, including those using wheelchairs and other technical means of rehabilitation, as well as of people disable to move who represent handicapped group of population.
Technical characteristics:
Carrying capacity, kg |
225 |
|
Holding capacity, pers. |
1 in a wheelchair 3 in a standing position |
|
Speed, m/s |
0,15 |
|
Elevation height, m (max) |
2 |
|
Number of stops (max) |
2 |
|
Platform |
Width, mm |
900 |
Depth, mm |
1250 |
|
|
|
|
Type
|
go |
|
|
|
|
Shaft |
Without shaft |
|
Upper floor door |
Width, mm |
900 |
Type |
Horizontal wing door |
|
Platform aperture fencing (lower floor) |
Width, mm |
900 |
Type |
Bar |
